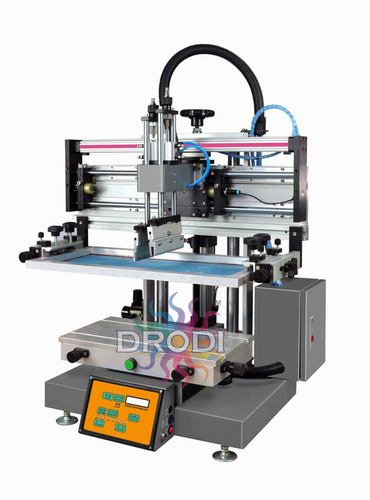

Screen Printing Machine with T slot worktable GW-2030T

Application:

It is a small size flat screen printing machine with small profile, fast and steady printing speed. It can makeup screen printing production line in small factory. It is suitable for printing products which surface is flat, such as paper, PVC sheet, mobile button, CD box, gift boxes etc

Function:

1. SCM IC complile action program
2. Auto 4-digit counter built-in
3. Airframe adopts coin alloy,and metal coating surface
4. distyle vertical constructure, high precision, steady operation
5. the transeversa stroke can be adjusted, spacing by Taiwan electronic switch
6. installing scraper constant pressure equipment to make sure pressure is steady when printing
7. the angle of scraper and reclaim blade can be adjusted randomly
8. you can regulate work-table back and forth or right and left, and then fastening it
9. you can regulate screen frame back and forth, right and left or level orientation
10. T-slot work-table, installing conveniently
11. installing Taiwan CEC absorbers to removing shaken
12. The machine is running fastly, it is steady and low voice


Technical parameter:

1. max.printing area: 200*300mm
2. printing speed: 1000-1200pcs/hr
3. power: 220V or 110V
4. work-table area: 250*400MM
5. max.sreen frame size: 300*500MM
6. max.height of printed products: 100MM
