Desktop Screen Printing Machine

Desktop Screen Printing Machine
Desktop Screen Printing Machine
Product Code : DR- GW-1010RS
Brand Name : DRODI
Trade Information
  • Minimum Order Quantity
  • Piece
  • Price
Product Description

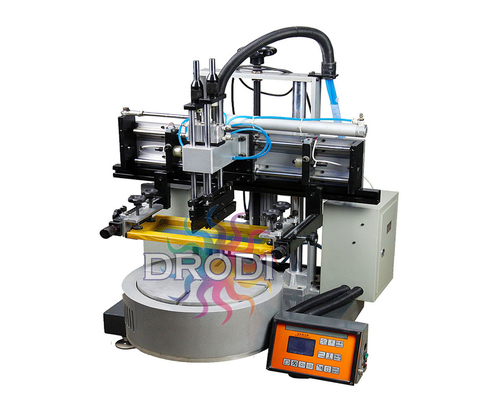

Desktop Screen Printing Machine GW-1010RS

Application: the screen printing machine can print logo on the Lens, mobile key, paper brick, small plastic products, CD box, gifts and other flat surface products

Specifications:
1. IC with touch panel program action programming;
2. Aluminum casting body with metal coating;
3. Auto 4-digit counter, calculate printing quantity;
4. Double pillar up/dowm struture, making sure precision and stable;
5. Transverse stroke can be adjusted, using Taiwan sensor to limit;
6. Squeegee, flood bar can set as any angle;
7. Squeegee constant pressure, keeping printing pressure stable;
8. T-slot worktable, convenient to install jig;
9. Installing CEC buffer, making sure printing stable;
10. Action mode: Auto semi-auto manual;
11. Start up: Panel pedal;
12. Squeegee pressure control: Pressure regulating valve;
13. Vertical driven: Pneumatic;
14. Transverse driven: Electronic;
15. Max printing area: 100*100mm;
16. Worktable diameter: 400mm;
17. Transverse stroke: 350mm;
18. Vertical stroke: 100mm;
19. Max height of product: 50mm;
20. Rotary table workstations: 2PCS 4PCS;
21. Auto-baiting manipulator, improve speed; printing capacity:1500 times/hour
